| Coating | G90 standard; ZMAX at G185; post-hot-dip at 2.0 ounces or more; Type 316 stainless. A Z or SS on the model number says which. | Double Barrier, Climatek, black zinc top coat, and the LOK coating each hold a code report calling them alternates to A153 hot-dip in Exposure Conditions 1 and 3. Stainless versions from Simpson and GRK. | Bright common nails for dry interior work; hot galvanized siding and casing nails; PrimeGuard Plus exterior screws with a 10-year coating warranty. | Finish is one of the three BHMA residential grades, A through C. |
| Treated lumber | Fastener tier set by the catalog's corrosion table: medium for treated wood in the weather, stainless above UC4A retention or on the waterfront. | Evaluated in ACQ-D (Simpson, Grip-Rite, FastenMaster) or CA-C (GRK) per each report; no saltwater. | Hot-dip galvanized to A153 for the deck frame; bright stays inside. | Not applicable. |
| Shank and thread | Connector nails by diameter and length: 0.131, 0.148, 0.162; full round head to ASTM F1667; SCNR ring shank in stainless. | Heat-treated or case-hardened; self-drilling Type 17 or gimlet point; reamer knurl or CEE thread above the threads; hex washer, flat washer, or bugle heads with star or hex drive. | Smooth shank commons; spiral shank siding nails; coarse-thread bugle-head exterior screws with T-20 or T-25 star drive. | Not applicable. |
| The row | LUS26: eight 0.148 by 3, 865 pounds floor, 1,165 uplift. H2.5A: ten 0.131 by 2-1/2, 700 uplift. ABU44Z: twelve 0.162 by 3-1/2 or two 1/2-inch bolts. DTT2Z: six SD screws and a 1/2-inch bolt. | Withdrawal and lateral values by species and thread penetration in ESR-2236, ESR-2442, ESR-3933, ESR-1078. | Structural screws in ESR-3933; the deck ledger screw carries its own technical evaluation report. | ANSI/BHMA Grade 1, 2, or 3 by cycle and strength test; AAA residential grade. |
| Substitution | Published factors on catalog page 26; SD Connector screw is the only screw approved; nails and screws not mixed. | A screw from one report does not go in another maker's connector. | Penny size is not the spec; read diameter by length. | Schlage: all mechanical deadbolts, knobs, levers, and handlesets AAA. Kwikset 980: Grade 1 in all three categories. |

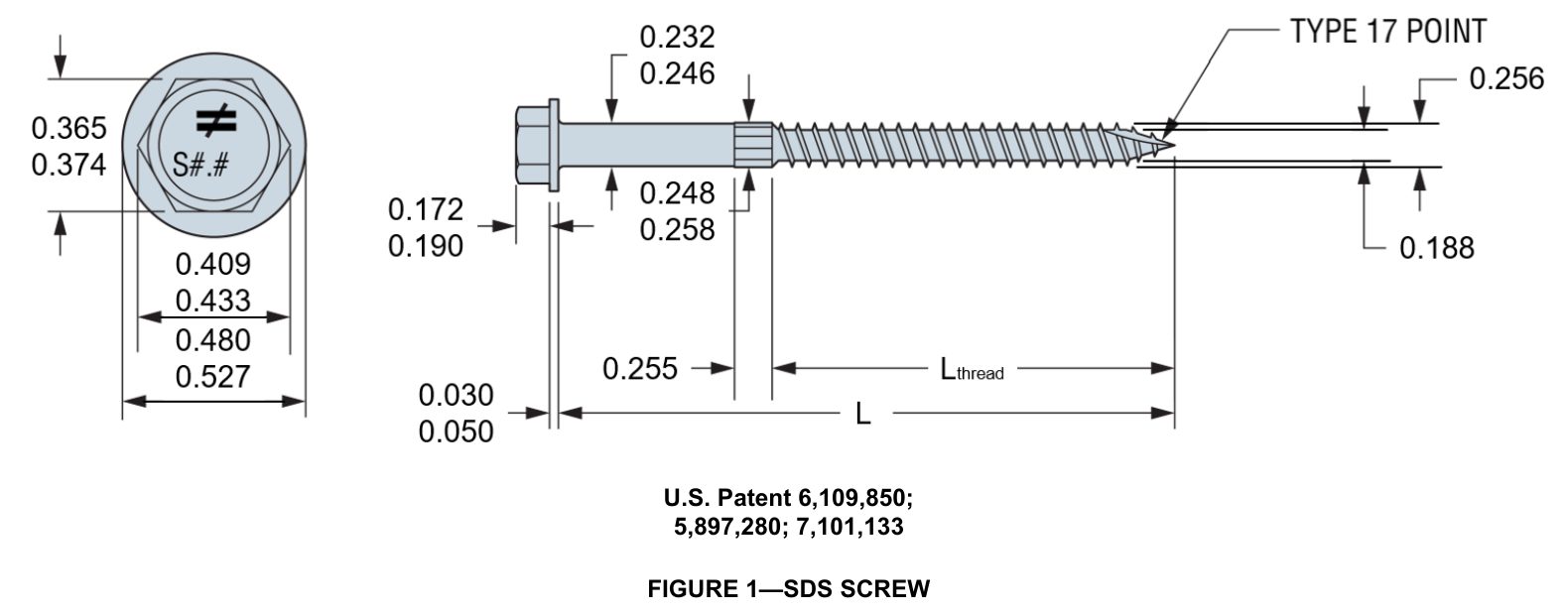

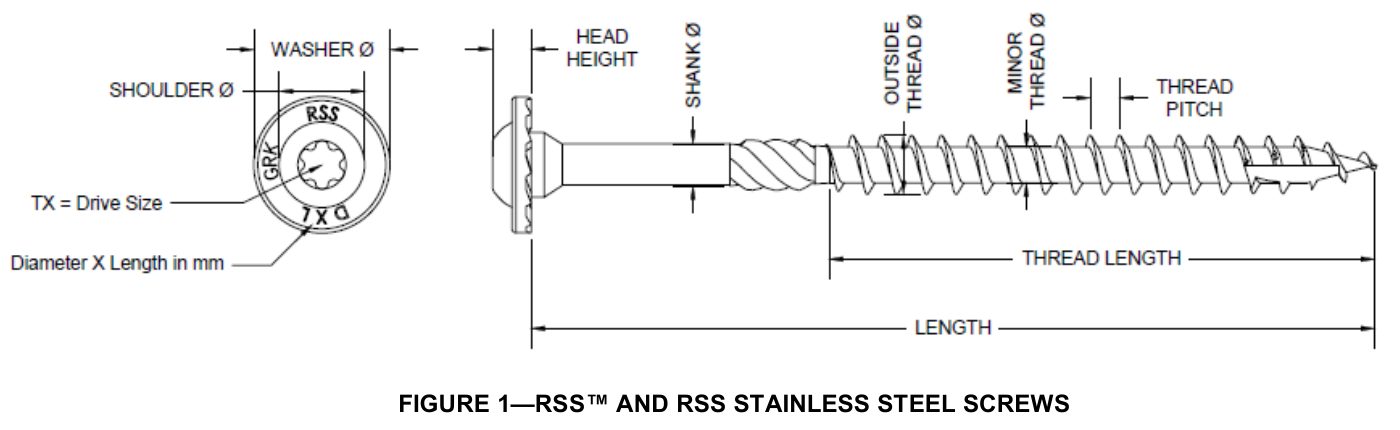

| On the yard | The common hangers, ties, post bases, and deck ties stocked; the catalog at the counter. | SDS, SD, RSS, TimberLOK, LedgerLOK, and Grip-Rite structural screws by the box or the pail. | Framing, coil, siding, and finish nails; deck and exterior screws by the box or the pail. | Stocked on the Ace side of the store, with the grade on the box. |
